Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration

Product Categories
Hebei Standard Filter Equipment Co.,Ltd
Contact Now

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration

  • 1
  • 2

Brand Name : STD Filter

Model Number : STD WWFS 001

Certification : CE，ISO9001

Place of Origin : Hebei,CN

MOQ : 1

Price : $20-200 /pcs

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1 pcs per day,

Delivery Time : 7 days or customized time

Packaging Details : plastic in wooden package or standard export package

shape : bend,panel,round,customized

Type : Filter Element

Length : up to 2 meters or as required

width : up to 1 meter or customized

diameter : 1 meter or customized

Material : 304,316 Stainless Steel

Usage : Filtration

Application : mining and energy

Craftsmanship : Weld

Feature : high resistance corrosion and wear resistance

Color : Silver

Hole Shape : Square,rectangular

Contact Now

 Stainless Steel Screen Pipe Johnson Tube Wedge Wire Screen Filter

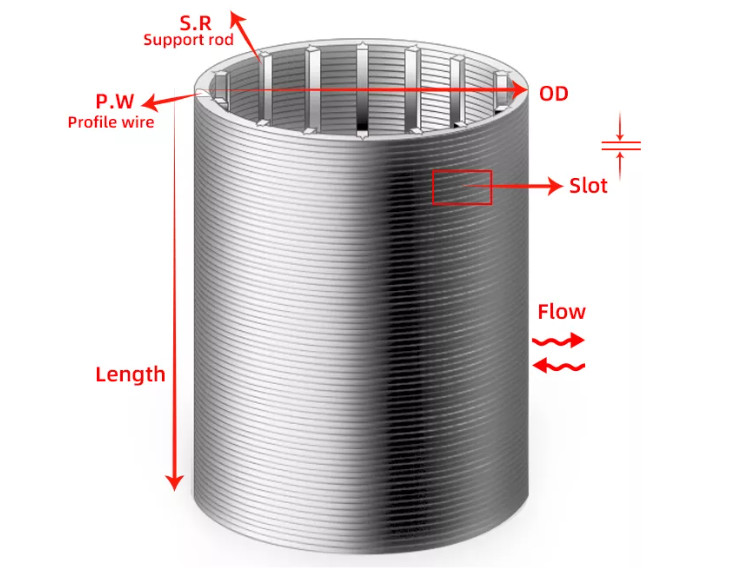

Wedge screen filter Introduction:


The wedgescreen filter is composed of rib strips and V shapedhrough manufacturing on specialized welding machine. The rib strips and V shaped  will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by client in any way.



SIZE (inch) O.D (mm) SLOT (inch) LENGTH (m) Collapse Strength (psi) Tensile Weight (ton) Wire size (mm) RODS (mm)
4 117 0.040 3 395 6 2.2*3.0 3.8mm/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8mm/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8mm/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8mm/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8mm/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8mm/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8mm/50

 Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
Wedge screen filter Features:

  • Non-clogging surface.
  • Large open area.
  • Low pressure drop.
  • Hydraulic efficiency.
  • High flow rates.
  • Mechanical strength.
  • Abrasion-resistant.
  • Easy cleaning.

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
 Wedge screen filter Applications:

  • Separating , filtering
  • Dewatering
  • Classifying
  • Straining , drying
  • Water intak

Packages

wooden case,carton box or as customer's request

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
The Delivery

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
