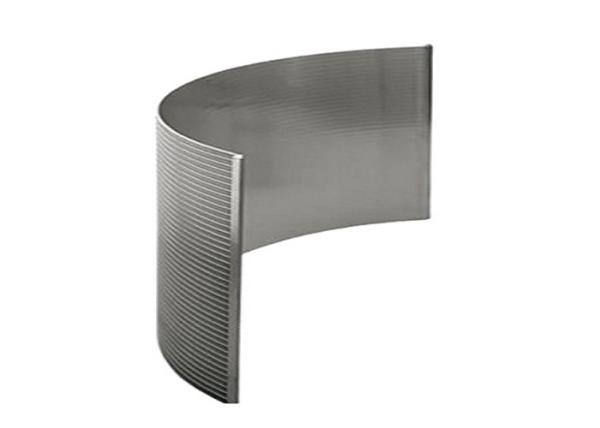

Stainless Steel 304 and 316 Bend Wedge Wire Strainer For Waste Water
Materials:
The waste water is a worst environment.The waste water may be acid or alkaline.It is very harmful and corrosive to the filter.But the Stainless Steel is not corroded by it.It is resistance to corrosion and abrasion.
The Stainless steel wedge wire Strainer is high precision.The slot can be 0.02mm if you need.It can filter out the bigger one than the slot.Also,the structure is special:the work face is Wedge WIre..The wider side is outside.If something pass the first side,it will never block the slot.So it is not easy to be blocked and can be cleaned easily.Besides,all of the surface is work part,it is high work efficiency.It can be manufacturinged the arc-shaped.The gravity of the waste water can give the strainer a push power to make the water passing more effencitly.
| Wedge wire | width(mm):1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Support rod | Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
| Slot size | 0.10 0.15 0.20 0.25 0.30.....6.00mm also achieved upon request. |
| Material | Stainless steel(304,316,316L etc.) |
| Length | up to 6m |
| Diameter | from 26mm to 1200mm |
| End connection | Plain beveled ends, flanged or threaded couplings |
Characteristic and Advantages:
1.The stainless steel is acid and alkali resistant.
2.High rigidity
3.Smooth work face.clean it easily
4.Customize the slot,can meet your dieeferent needs.
5.Wedge Wire,not easy to be blocked.It can save your labour work.
6.Long service time to save your cost.

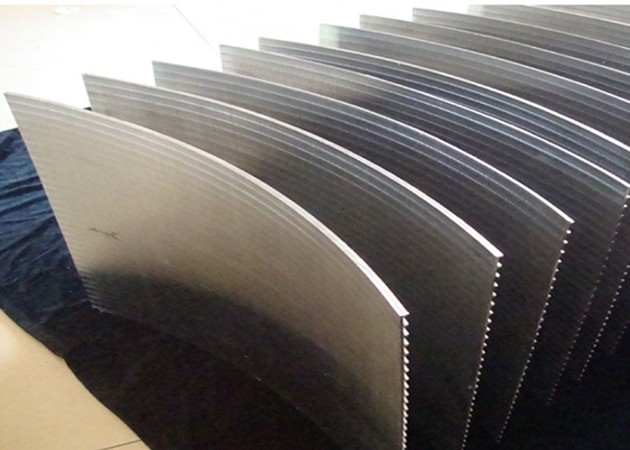

The Details:
Application:
1.Waste water filtration
2.koi pond
3.Industry filtration
4.Drinking water pre-filter
5.Other liquid and solid seperation areas.
The package and The delivery:
The package is plastic in the wooden box,standard export package.
