Stainless steel wedge mesh 304 seam screen trapezoidal screen mine screen welding screen
Materials:
Wedge screen filter flat mesh filter plates are custom made and can be designed and built to fit any screening equipment of any specified width and length. The size, shape and spacing of the profile lines are designed to meet your specific work requirements. A single wire on the working surface of each wedge-shaped wire mesh can be tilted to better suit your needs.
It comes in all shapes and sizes. From two basic forms, fluted tubes and flat screens, almost all shapes and sizes can be developed to meet customer requirements.
| Product Name | Stainless Steel 316 Waste Water Static Screen Wedge Wire Screen Panel |
| Material | stainless steel |
| Color | silver white |
| Standard | DIN GB ISO API |
| Grade | SS201 , SS304 , SS304L , SS316 , SS316L , |
| Brade | STD Filter |
| Thread | smooth, fine |
| Used | screening,filter |
| Slot size | 0.1-3mm, opening area up to 60% |
| length | 6m Length up to 6m |
| Width | customized |
| End connection | flat and inclined face welding or threaded |
| Note | can be designed according to requirements |

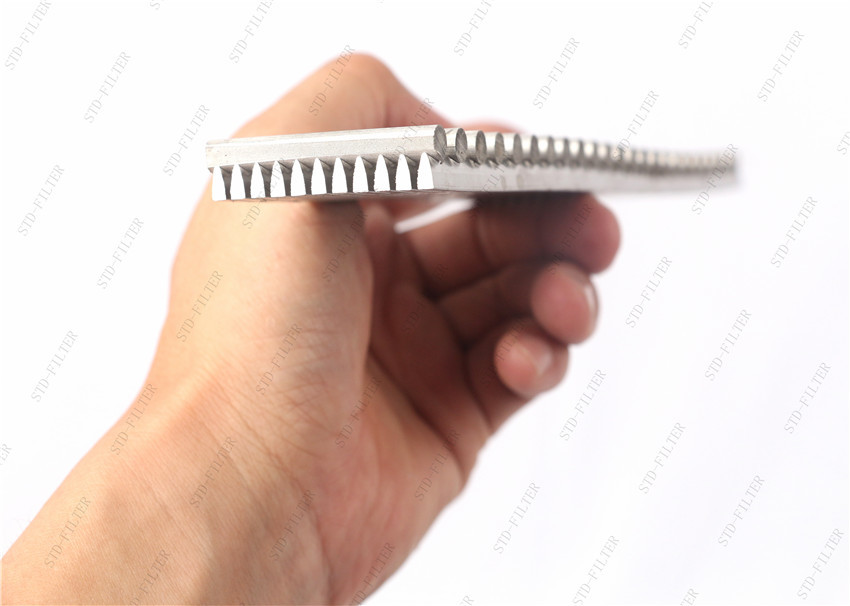

The Details:
Characteristic:
1. A continuous dock starting which significantly raises the reachable open location, as a result supplying greater convenience showing sector
2. A V-molded bank account wire which removes blocking and ensures an constant blood circulation.
3. A consistent and productive well development due to continuous slot launching.
4. Ladder-like wire welded display display screens have a potent development and start location, along with correct port sizing.
5. Move step ladder-like cable welded screens have the alternatives which come with simple backwashing, previous for very long, safety and dependability and also reduce extensive cost.
Maximazing flow prices :
When contemplating displays of equivalent period, sizing and harbour dimensions, movements charges through V-developed well surface can be Three times over website link-harbour screens Nine times a lot more than slotted addressing
Low blocking slot :
On-going-port well exhibit monitors have V-molded availabilities that narrowest in the outside deal with and expand inwardly, consequently, outsized pollutants are retained beyond the check and particles completing with all the slim outdoors starting can enter into the show.
Decreasing of operating charge :
By way of a Continous-port well keep an eye on, cost savings could be accomplished in moving bills. Lower through-slot velocities symbolize pressure declines are decreased, therefore :
Drawdowns are lessened, Far less energy is needed for working, Flow expenses are elevated, A lot less beach fine sand in drinking water brings down put on on the pumping solutions.
Application:
Wedge screen filters are ideal for filtration, separation and dehydration. It is widely used in pharmaceutical industry, high temperature petrochemical industry, corrosive liquid filtration, a variety of hydraulic oil machinery industry, lubricating oil filtration, anti-riot device in the buzzer and other industries.
In addition, it is also used in polyester, petroleum, food and beverage, chemical fiber, water treatment, gas filtration and other industries.
The package:
The package is plastic in the wooden box,standard export package.
