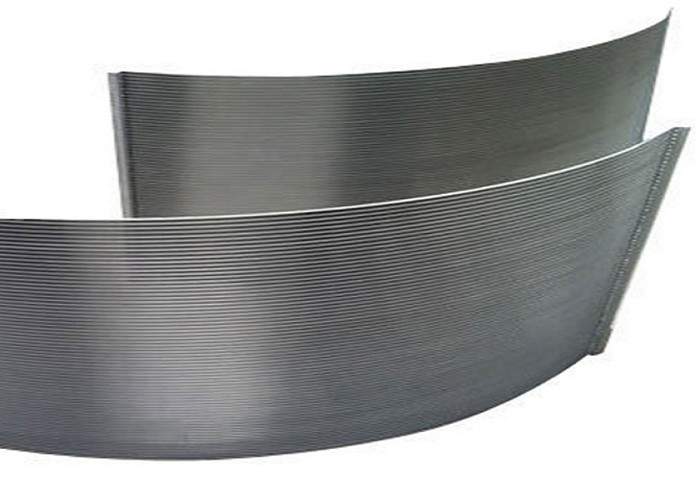

0.1mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure

Name: 01mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure
Brand: STD Filter
Price: 50 USD

Buy cheap 0.1mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure product

Brand Name : STD Filter

Model Number : STD WWF 009

Certification : CE，ISO9001

Place of Origin : Hebei,CN

MOQ : 1

Price : $50-500 /pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1 pcs per day,

Delivery Time : 7 days or customized time

Packaging Details : plastic in wooden package or standard export package

Material : Stainless Steel316,304,AISI 304,316. SUS 304 or 316

Length : 2 meters or as required

Width : 1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm

Diameter : 1 meter or customized

Type : separation

Usage : water or air filtration

Technique : Welding

Application : Water well

Filter rating : 99%

Feature : Corrosion Resistance

Slot size : 0.1-6.0 mm

Contact Now

Stainless Steel 304/316 Customized Separation Wedge Wire Strainer For Pulp &Paper

The Introduction

Wedge wire mesh filter element is also called wedge wire mesh, made of V - shaped contour and longitudinal support rod. Each crossing point of these wires is fused welding, and the structure is strong and has good mechanical properties. Profile lines and support rods can be axial or radial. It mainly includes internal filtering and external direction filtering. Depending on the purpose, we can design the direction and shape of the process to meet the requirements of the application. In addition, we can customize wedge silk filter elements according to customer requirements, such as filter tube, filter basket.

Name	wedge wire screen
Material	stainless steel(304,316)
Wedge wire	Width(mm): 1.5,1.8,2.3,3.0,3.3,3.7,1.0,4.5 Height:(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0
Support rod	Width(mm): 1.5,2.0,2.3,2.7,3.0,3.3,3.7,4.0,4.5 Height(mm): 1.5,2.2,2.7,3.0,3.6,4.0,4.5,4.7,5.5,5.6,6.3 Round rod: 2.5-6.0mm
Thickness	usually 1mm,1.2mm,1.5mm,2.0mm etc
Length	300mm,500mm customized
Width	30mm,35mm,50mm,60mm,customized
Openging rate	45%,60%,85% etc customized
SurfaceTreatm	Electric galvanized, Hot dipped galvanized, oxidation treatment etc
Usage	screening,decoration, sifting, filtration, drying, cooling, cleaning
Delivery Detail	7-15 days after receiving the 30% deposit or as required

The Features:

Low carbon, galvanized or stainless steel construction.
More open areas and high-precision openings.
Maximum design flexibility.
More durable.
High mechanical strength.
Pressure resistance, high temperature, aging, corrosion.
Easier to install and run for a long time.
Low cost of operation and maintenance.
Easy to clean and reuse.

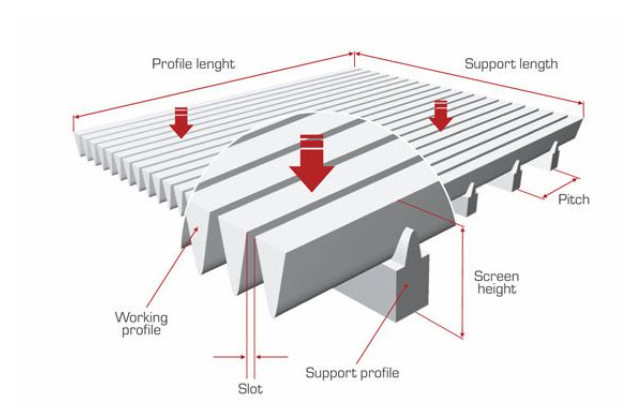

Wires and Rods Information

Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :

The most common wire

0.1mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure
The most common support rod

The Advantage of The Wedge Wire Filter
1.Customized shape and slot: can meet the special needs
2.The smooth surface:easily to be cleaned.
3.Wedge shape: have a better capacity.
4.The stainless steel:be resistance to crosion and abrasion.etc

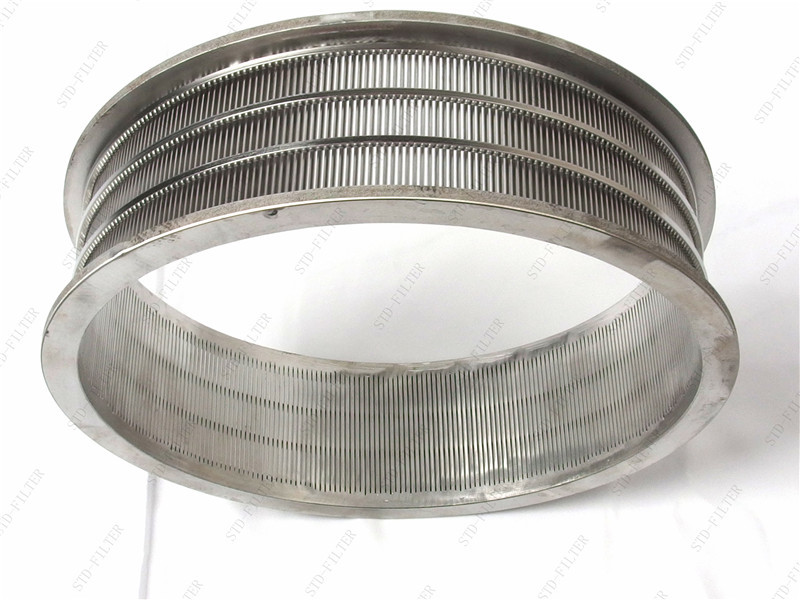

The Details

0.1mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure

0.1mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure

The Usage accasions:

Wedge wire filter element is widely used in deep well pumps, submersible pumps. Also used in wastewater treatment, water softening treatment, oil industry, food processing, mineral processing, alkali filtration.

0.1mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure

The Package:

0.1mm Slot Wedge Wire Filter Element Low Carbon Galvanization Stainless Steel Structure

The Delivery

Please Meet us on The http://www.wedgefilter.com
