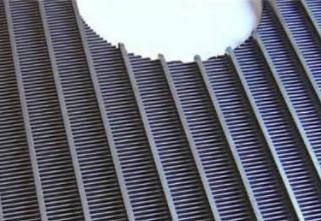

SUS 316 Good Flat Panel Surface V-Shape Wedge Wire Strainer For Gold Ore And Mining
Wedge wire filter core is welded by wedge-shaped winding strip and reinforcement strip. A continuous gap is formed on the surface of the filter element. From the cross section, the gap presents a narrow outside and wide inside structure. Filtration direction from outside to inside.
| Wedge wire | width(mm):1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Support rod | Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
| Slot size | 0.10 0.15 0.20 0.25 0.30.....6.00mm also achieved upon request. |
| Material | Stainless steel(304,316,316L etc.) |
| Length | up to 6m |
| Diameter | from 26mm to 1200mm |
| End connection | Plain beveled ends, flanged or threaded couplings |
The Benifits of V-shape Wedge Slot Wire Strainer
1, can withstand the pressure. Unique self-supporting structure allows it to withstand very high pressure, suitable for high pressure filtration processes and equipment.
2, high filtration accuracy. The gap is 10 microns and the error is 5 microns. Fully meet the current industry of filtration accuracy requirements.
3, not easy to plug, easy to backwash. Narrow outside and wide inside gap structure makes the filter element with "self-cleaning" function, impurities will not be stuck, backwashing process is more thorough, cleaning effect is ideal.
4. Small seepage velocity. Compared with other filter elements, the flow rate of liquid through the wedge wire filter element is smaller, the pressure drop is small, more stable. Especially suitable for high viscosity liquid filtration.
5, filter element roundness is high, no edges and corners on the surface. Compared with the angular filter element, the pure round filter element can not only improve the filter area, but also can make the filter element compression more uniform, so that the high pressure environment stability. Pure round filter element is more suitable for filter element external decontrination device filter.
6. Various materials. Can choose different materials according to the specific use environment, has reached the requirements of wear resistance, high temperature resistance, corrosion resistance and so on. The commonly used materials are stainless steel 304, 316L, 904L and Hastelloy, etc. Customers can also specify the material.
The Features:
1: high strength because the crossing points are welded, so the mechanical strength is high.
2: high precision because of high mechanical strength, so excellent wear resistance.
3: wear resistance due to the use of coarse wire composition, gu wear-resisting surname can be excellent.
4: fast processing speed because the surface is smooth, so the processing object or catalyst and so on can flow smoothly.
5: not easy to plug because of the triangle section, the particle is not easy to plug, can be used for a long time.
6: dehydration performance is good because of the small contact surface through the screen, so the dehydration performance is excellent.
7: easy to maintain due to high rigidity and dehydration performance, so excellent resilience, easy to maintain.
8: good environmental performance, the wire wound screen can be repeated use, can replace the one-time filter cloth and filter paper.
9. Large plasticity, can be made into flat cylindrical (rolled inside) cone and other shapes.
The screen slot size can be adjusted freely, and easy to adjust, so it can flexibly respond to the change of specifications.
The Applications:
1: filter element for dewatering machine,
2: filter, such as diatomite filter,
3: centrifuge parts,
4: vibrating screen machine,
5: solid liquid separation device coarse filter element,
6: water intake and treatment devices for river water and seawater,
7: activated carbon and plasma exchange device and other catalysts,
8: filter material retaining parts
The diagram demonstrates why welded wedge cable factors are rigid and robust and thereby keeps extremely dependable port launching on a regular basis.
The package:
The delivery
So we will be the best of your choice to the wedge wire filter manufacturer. For all your specifications and other information about welded wedge cable monitors please mail us today at sales2@filtercustom.cn.
