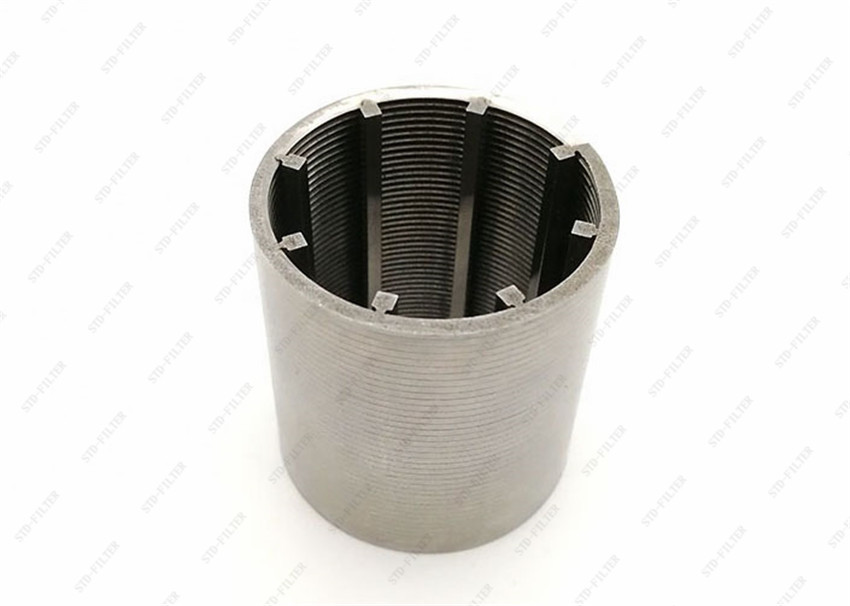

Wedge wire strainer is firm,long service life.
Materials:

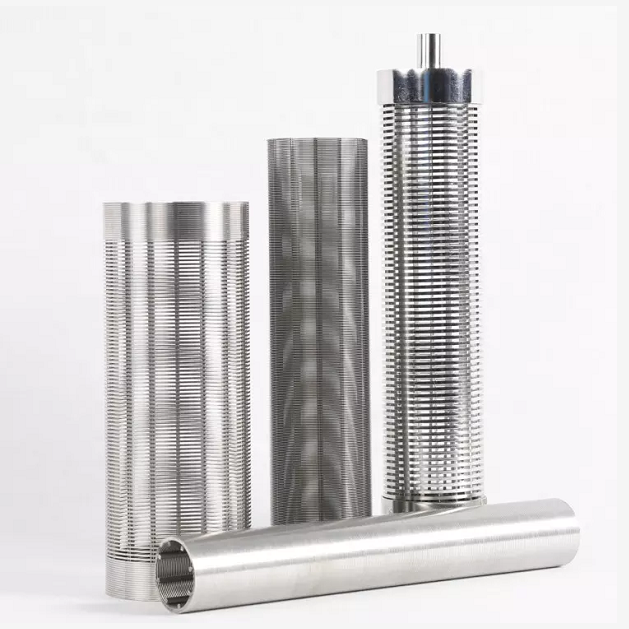

Wedge wire filter tube is derivatives include:wedge-shaped water cap,wedge-shaped wire cloth water device,wedge-shaped wire row device,wedge-shaped wire resin trap,etc.
| SIZE (inch) | O.D (mm) | SLOT (inch) | LENGTH (m) | Collapse Strength (psi) | Tensile Weight (ton) | Wire size (mm) | RODS (mm) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
Product Features:
Wedge-shaped wire wound screen is widely used in oil, gas, water well sand control and chemical industry, environmental protection and other applications are particularly important. Is a variety of oil, water resources recycling and collection of resin filter material link used in the use of the most extensive range of a filter screen.
Johnson T-shaped wire wound screen adopts the world's most advanced full-wound welding production process, the use of special stainless steel trapezoidal (wedge) wire winding in a circumferential arrangement of a set of longitudinal support rods welded to ensure its strength and service life.
Due to the use of full program welding, not only to ensure strict continuity of the product integrity, but also to form the ideal gap size. Compared with the current welding process widely used in China, all-welded wedge-shaped wire wound screen tube, filter pipe, water cap, water distributor, resin catcher and screen plate, with smooth pipe surface, no production edges and corners, no burr, uniform gap does not leak grease characteristics.
Function:
1. The application of trapezoidal (wedge) wire on the filter element makes the v-shaped opening form between the gaps of the screen tube. Because of the inherent advantages of the facility, it can operate more efficiently than other forms of filtration products, not only to ensure the smooth filtration of water resources, but also in terms of working efficiency, the flow of the wedge-wire filter pipe is 3 times that of the bridge filter pipe, is 9 times that of the slit filter pipe.
2. Structural advantages of wrapped wire tubes. The vertical support rod arrangement and the continuous gap form of the screen pipe are designed according to the actual requirements, so that the product has higher compression performance. T - shaped winding wire and all longitudinal support rod are connected by welding combination, strong and durable, longer working life cycle, low overall cost.
3. Filter pipe gap range is large. Any screen gap size between 0.02mm and 60mm can be made according to actual requirements to meet different application conditions.
Other Applications:
1.Environmental protection
2.water/liquid filtration
3.air/liquid filtration
4.Drinking water pre-filter
5.mining
Package and Delivery:
Package is professional export and wooden box.If you have any special demands.we can negotiate.
The delivery is door to door,or we can negotiate.
